Test Indicator

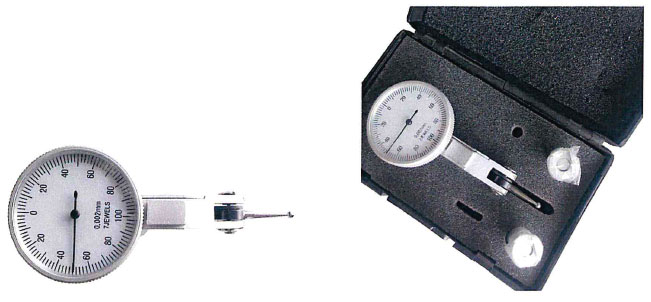

Dial Test Indicator
Features :
Jeweled bearing.- Carbide contact point.
- Steel, Carbide and Ruby contact point are optional.
- Dial plate diameter 32mm (40mm big dial plate optional).
Metric
| Range | Graduation | Accuracy | Scale | Contact Point Length | Code No. (32mm Dia.) |
Code No. (40mm Dia.) |
|---|---|---|---|---|---|---|
| 0-0.2mm | 0.002mm | ±0.004mm | 0-100-0 | 16mm | 33011-020 | 33011-120 |
| 0-0.5mm | 0.01mm | ±0.013mm | 0-25-0 | 19mm | 33011-051 | 33011-151 |
| 0-0.8mm | 0.01mm | ±0.013mm | 0-40-0 | 19mm | 33011-081 | 33011-181 |
| 0-1.0mm | 0.01mm | ±0.013mm | 0-50-0 | 19mm | 33011-011 | 33011-111 |
Inch
| Range | Graduation | Accuracy | Scale | Contact Point Length |
Code No. (32mm Dia.) |
|---|---|---|---|---|---|
| 0-0.008" | 0.0001" | ±0.0001mm | 0-4-0 | 16mm | 33021-020 |
| 0-0.03" | 0.0005" | ±0.0005mm | 0-15-0 | 19mm | 33021-081 |

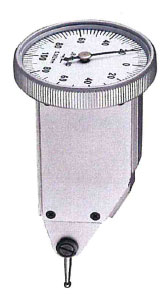

Vertical Dial Test Indicator
Features :
- Jeweled bearing.
- Carbide contact point.
- Steel, Carbide and Ruby contact point are optional.
- Dial plate diameter 32mm (40mm big dial plate optional).
Metric
| Range | Graduation | Accuracy | Scale | Contact Point Length | Code No. (32mm Dia.) |
Code No. (40mm Dia.) |
|---|---|---|---|---|---|---|
| 0-0.2mm | 0.002mm | ±0.004mm | 0-100-0 | 16mm | 33012-020 | 33012-120 |
| 0-0.5mm | 0.01mm | ±0.013mm | 0-25-0 | 19mm | 33012-051 | 33012-151 |
| 0-0.8mm | 0.01mm | ±0.013mm | 0-40-0 | 19mm | 33012-081 | 33012-181 |
| 0-1.0mm | 0.01mm | ±0.013mm | 0-50-0 | 19mm | 33012-011 | 33012-111 |
Inch
| Range | Graduation | Accuracy | Scale | Contact Point Length |
Code No. (32mm Dia.) |
|---|---|---|---|---|---|
| 0-0.008" | 0.0001" | ±0.0001mm | 0-4-0 | 16mm | 33022-020 |
| 0-0.03" | 0.0005" | ±0.0005mm | 0-15-0 | 19mm | 33022-081 |

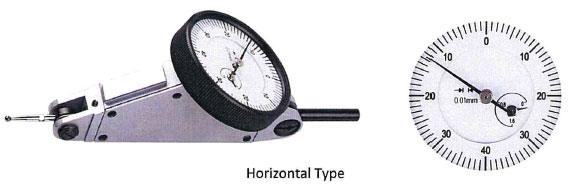

Large Range Dial Test Indicator
Features :
- Jeweled bearing.
- Carbide contact point.
- Steel, Carbide and Ruby contact point are optional.
- Dial plate diameter 32mm (40mm big dial plate optional).
- Both horizontal and vertical types are optional.
Metric
| Range | Graduation | Accuracy | Scale | Contact Point Length | Code No. (32mm Dia.) |
Code No. (40mm Dia.) |
|---|---|---|---|---|---|---|
| Horizontal Type | ||||||
| 0-1.6mm | 0.01mm | ±0.02mm | 0-40-0 | 19mm | 33013-161 | 33013-261 |
| Vertical Type | ||||||
| 0-1.6mm | 0.01mm | ±0.02mm | 0-40-0 | 19mm | 33014-161 | 33014-261 |
Inch
| Range | Graduation | Accuracy | Scale | Contact Point Length |
Code No. (32mm Dia.) |
Code No. (40mm Dia.) |
|---|---|---|---|---|---|---|
| Horizontal Type | ||||||
| 0-0.06" | 0.0005" | ±0.0012" | 0-15-0 | 19mm | 33023-160 | 33023-260 |
| 0-0.06" | 0.001" | ±0.0012" | 0-15-0 | 19mm | 33023-161 | 33023-261 |
| Vertical Type | ||||||
| 0-0.06" | 0.005" | ±0.0012" | 0-15-0 | 16mm | 33024-160 | 33024-260 |
| 0-0.06" | 0.001" | ±0.0012" | 0-15-0 | 19mm | 33024-161 | 33024-261 |
