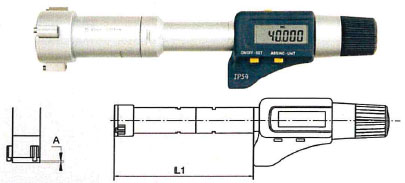

Digital 3 Points Internal Micrometer (6-100mm)
Features :
Resolution: Metric: 0.001mm / Inch: 0.00005".- IP54 protection Level.
- Close to the buttom of blind hole. Can measure deep hole with extension rod.
- Carbide-tipped contact points.
| Range |
Accuracy |
Setting Rings |
L1 |
A |
Extension Rods |
Code No. |
| Metric |
| 6-8mm |
0.004mm |
Ø6mm |
54.5mm |
1.5mm |
100mm |
41111-008 |
| 8-10mm |
0.004mm |
Ø8mm |
54.5mm |
1.5mm |
100mm |
41111-010 |
| 10-12mm |
0.004mm |
Ø10mm |
54.5mm |
1.5mm |
100mm |
41111-012 |
| 12-16mm |
0.004mm |
Ø16mm |
80mm |
0.5mm |
150mm |
41111-016 |
| 16-20mm |
0.004mm |
Ø16mm |
80mm |
0.5mm |
150mm |
41111-020 |
| 20-25mm |
0.004mm |
Ø25mm |
90mm |
0.5mm |
150mm |
41111-025 |
| 25-30mm |
0.004mm |
Ø25mm |
90mm |
0.5mm |
150mm |
41111-030 |
| 30-40mm |
0.004mm |
Ø40mm |
97mm |
0.5mm |
150mm |
41111-040 |
| 40-50mm |
0.005mm |
Ø40mm |
97mm |
0.5mm |
150mm |
41111-050 |
| 50-63mm |
0.005mm |
Ø62mm |
114mm |
0.5mm |
150mm |
41111-063 |
| 62-75mm |
0.005mm |
Ø62mm |
114mm |
0.5mm |
150mm |
41111-075 |
| 75-88mm |
0.005mm |
Ø87mm |
114mm |
0.5mm |
150mm |
41111-088 |
| 87-100mm |
0.005mm |
Ø87mm |
114mm |
0.5mm |
150mm |
41111-100 |
| Inch |
| 0.275-0.35" |
0.00016" |
Ø0.275" |
2.18" |
0.06" |
4" |
41121-003 |
| 0.35-0.425" |
0.00016" |
Ø0.35" |
2.18" |
0.06" |
4" |
41121-004 |
| 0.425-0.5" |
0.00016" |
Ø0.5" |
2.18" |
0.06" |
4" |
41121-005 |
| 0.5-0.65" |
0.00016" |
Ø0.65" |
3.2" |
0.02" |
6" |
41121-006 |
| 0.65-0.8" |
0.00016" |
Ø0.65" |
3.2" |
0.02" |
6" |
41121-008 |
| 0.8-1" |
0.00016" |
Ø1" |
3.6" |
0.02" |
6" |
41121-010 |
| 1-1.2" |
0.00016" |
Ø1" |
3.6" |
0.02" |
6" |
41121-012 |
| 1.2-1.6" |
0.00016" |
Ø1.6" |
3.88" |
0.02" |
6" |
41121-016 |
| 1.6-2" |
0.0002" |
Ø1.6" |
3.88" |
0.02" |
6" |
41121-020 |
| 2-2.5" |
0.0002" |
Ø2.5" |
4.56" |
0.02" |
6" |
41121-025 |
| 2.5-3" |
0.0002" |
Ø2.5" |
4.56" |
0.02" |
6" |
41121-030 |
| 3-3.5" |
0.0002" |
Ø3.5" |
4.56" |
0.02" |
6" |
41121-035 |
| 3.5-4" |
0.0002" |
Ø3.5" |
4.56" |
0.02" |
6" |
41121-040 |

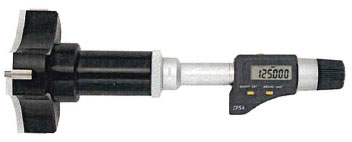

Digital 3 Points Internal Micrometer (100-300mm)
Features :
- Resolution: Metric: 0.001mm / Inch: 0.00005".
- IP54 protection Level.
- Measurement can be taken closer to the bottom of blind bore, and can measure deep hole with extension rod.
- Carbide-tipped contact points.
- Additional extension can be added to increase the measuring depth.
- Ratchet stop.
- Setting rings are not included but optional.
- Packed in Aluminum box.
| Range |
Accuracy |
Setting Rings |
L1 |
Extension Rods |
Code No. |
| Metric |
| 100-125mm |
0.005mm |
Ø112.5mm |
150mm |
150mm |
41111-125 |
| 125-150mm |
0.005mm |
Ø137.5mm |
150mm |
150mm |
41111-150 |
| 150-175mm |
0.005mm |
Ø162.5mm |
150mm |
150mm |
41111-175 |
| 175-200mm |
0.005mm |
Ø187.5mm |
150mm |
150mm |
41111-200 |
| 200-225mm |
0.007mm |
Ø212.5mm |
150mm |
150mm |
41111-225 |
| 225-250mm |
0.007mm |
Ø237.5mm |
150mm |
150mm |
41111-250 |
| 250-275mm |
0.007mm |
Ø262.5mm |
150mm |
150mm |
41111-275 |
| 275-300mm |
0.007mm |
Ø287.5mm |
150mm |
150mm |
41111-300 |
| Inch |
| 4-5" |
0.0002" |
Ø4.5" |
6" |
6" |
41121-050 |
| 5-6" |
0.0002" |
Ø5.5" |
6" |
6" |
41121-060 |
| 6-7" |
0.0002" |
Ø6.5" |
6" |
6" |
41121-070 |
| 7-8" |
0.0002" |
Ø7.5" |
6" |
6" |
41121-080 |
| 8-9" |
0.00028" |
Ø8.5" |
6" |
6" |
41121-090 |
| 9-10" |
0.00028" |
Ø9.5" |
6" |
6" |
41121-100 |
| 10-11" |
0.00028" |
Ø10.5" |
6" |
6" |
41121-110 |
| 11-12" |
0.00028" |
Ø11.5" |
6" |
6" |
41121-120 |
