Indicator Stands

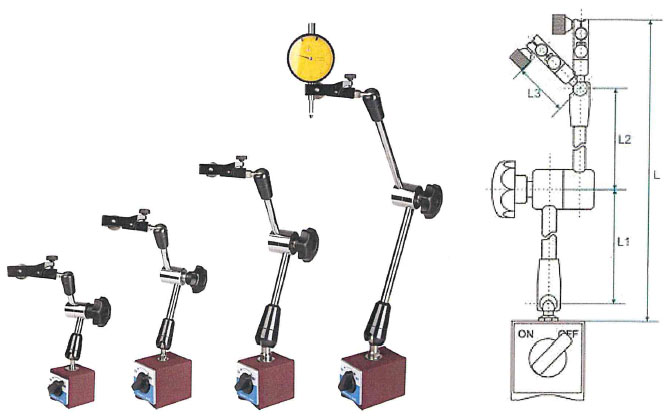

Strong Mechanical Universal Arm Magnetic Indicator Stand
Features :
Strong central locking mechanism.- New type fine adjustment on the top.
- Permanent on/off magnetic base.
- With 8mm clamping hole (optional 3/8").
| Holding Power | Base | L | L1 | L2 | L3 | Dial of Clamp Hole | Code No. |
|---|---|---|---|---|---|---|---|
| 50KG | 40X40X40 | 192 | 59 | 47 | 64 | 6.0/8.0/Dovetail | 52004-050 |
| 80KG | 60X50X55 | 262 | 93 | 73 | 68 | 52004-080 | |
| 80KG | 60X50X55 | 354 | 140 | 103 | 70 | 52014-080 | |
| 100KG | 73X50X55 | 472 | 198 | 174 | 70 | 52004-100 |
