Calipers

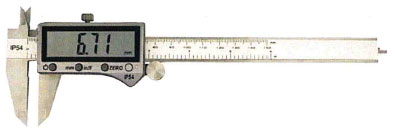

Big Screen Digital Caliper
Features :
Large screen display.- Stainless steel material.
- IP54 protection level, can be used in workshop conditions.
- Thumb wheel for fine adjustment.
- Packed in plastic box.
| Range | Resolution | Accuracy | Code No. |
|---|---|---|---|
| 0-150mm/0-6" | 0.01mm/0.0005" | ±0.02mm/0.001" | 11007-060 |
| 0-200mm/0-8" | 0.01mm/0.0005" | ±0.03mm/0.0015" | 11007-080 |
| 0-300mm/0-12" | 0.01mm/0.0005" | ±0.03mm/0.0015" | 11007-120 |

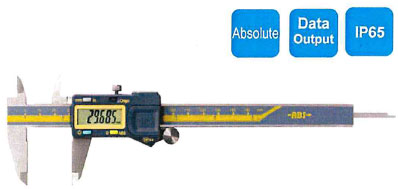

Absolute Digital Caliper
Features :
- Stainless steel material.
- IP65 protection level, can be used in workshop conditions.
- Absolute measurement system. No response speed limit.
- Thumb wheel for fine adjustment.
- With data output port (DCB-01/DWB-01).
| Range | Resolution | Accuracy | Code No. |
|---|---|---|---|
| 0-100mm/0-4" | 0.01mm/0.0005" | ±0.02mm/0.001" | 11002-041 |
| 0-150mm/0-6" | 0.01mm/0.0005" | ±0.02mm/0.001" | 11002-061 |
| 0-200mm/0-8" | 0.01mm/0.0005" | ±0.03mm/0.0015" | 11002-081 |
| 0-300mm/0-12" | 0.01mm/0.0005" | ±0.03mm/0.0015" | 11002-121 |

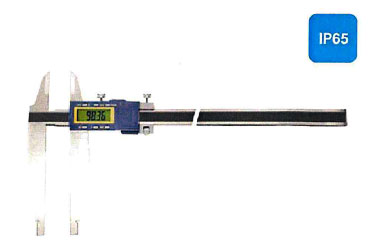

Water-Proof Heavy Duty Digital Caliper with Upper Knife-edge
Features :
- With upper knife-edge for external measurement.
- Design with fine adjustment to allow precise movement.
- Hold and Pre-set function.
- Inductive measurement system, provide IP65 protection grade.
| Jaw Length | |||||||
|---|---|---|---|---|---|---|---|
| Range | Resolution | Accuracy | T1 | A | E | Upper Jaw | Code No. |
| 0-300mm/0-12" | 0.01mm/0.0005" | 0.03mm/0.0015" | 10mm/0.5" | 90mm | 90mm | 38mm | 19201-030 |
| 0-500mm/0-20" | 0.01mm/0.0005" | 0.05mm/0.002" | 20mm/0.8" | - | 150mm | 60mm | 19201-050 |
| 0-600mm/0-24" | 0.01mm/0.0005" | 0.05mm/0.002" | 20mm/0.8" | 100mm | - | 60mm | 19201-060 |
| 0-800mm/0-32" | 0.01mm/0.0005" | 0.06mm/0.0025" | 20mm/0.8" | 125mm | 150mm | 63mm | 19201-080 |
| 0-1000mm/0-40" | 0.01mm/0.0005" | 0.06mm/0.0025" | 20mm/0.8" | 125mm | 150mm | 63mm | 19201-100 |

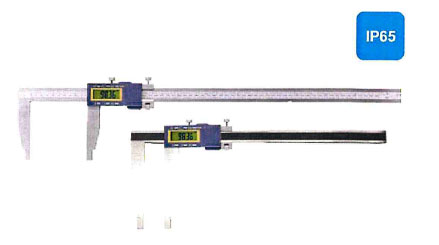

Water-Proof Heavy Duty Digital Caliper
Features :
- Designed with fine adjustment to allow precise movement.
- Stainless steel with hardened measuring faces.
- Hold and Pre-set function.
- Inductive measurement system, provide IP65 protection grade.
| Jaw Length | ||||||
|---|---|---|---|---|---|---|
| Range | Resolution | Accuracy | T1 | A | E | Code No. |
| 0-300mm/0-12" | 0.01mm/0.0005" | 0.03mm/0.0015" | 10mm/0.5" | 90mm | 90mm | 19202-030 |
| 0-500mm/0-20" | 0.01mm/0.0005" | 0.05mm/0.002" | 20mm/0.8" | - | 150mm | 19202-050 |
| 0-600mm/0-24" | 0.01mm/0.0005" | 0.05mm/0.002" | 20mm/0.8" | 100mm | - | 19202-060 |
| 0-800mm/0-32" | 0.01mm/0.0005" | 0.06mm/0.0025" | 20mm/0.8" | 125mm | 150mm | 19202-080 |
| 0-1000mm/0-40" | 0.01mm/0.0005" | 0.06mm/0.0025" | 20mm/0.8" | 125mm | 150mm | 19202-100 |
