Coating Thickness Tester

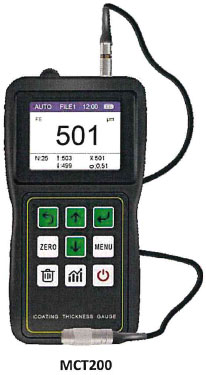

Portable Coating Thickness Tester
Features :
Integration of two thickness measurement methods, which can measure the thickness of the non-magnetic coating layer on the magnetic metal substrate and non-conductive coating layer on the non-magnetic metal substrate.- There are three measurement modes: high-precision measurement mode can average multiple measurements and automatically filter suspicious data to ensure more accurate and stable measurement values; fast measurement mode can realize real-time scanning function.
- With temperature compensation function. The domestic leading real- time temperature compensation technology can automatically compensate the measurement error caused by the environment temperature and the temperature change of the probe, making the measurement more accurate.
- There are five statistics: mean value (MEAN), maximum value (MAX), minimum value (MIN), number of measurements (NO.), and standard deviation (S.DEV).
- Support real-time upload of coating thickness via Bluetooth.
Technical Data :
| Model | MCT200 | ||
|---|---|---|---|
| Working Principle | Magnetic indication | Eddy currents | |
| Probe type | F | N | |
| Measurement rage (um) | 0-1500 | 0-1500 Chromium plating on copper 0-40 |
|
| Resolution (um) | 0.1μm (0~99μm), 1μm(>99μm) | ||
| Indication value | One-point calibration (um) (H is the actual thickness of the measurement object) | +(3%H+1) | +(3%H+1.5) |
| Two-points calibration (um) (H is the actual thickness of the measurement object) | ±[(1-3)%H+1] | [(1-3)%H+1.5] | |
| Test conditions | Minimum radius of curvature (mm) | Convex 3 | Convex 3 |
| Diameter of minimum area (mm) | Ø7 | ||
| Critical thickness of matrix (mm) | 0.5 | 0.3 | |
