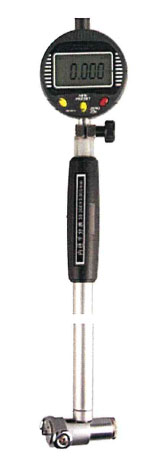

Digital Bore Gauge
Features :
Movable probe pin with carbide ball.- Steel-harden-tipped contact point for excellent durability.
- 18-35mm range is with canister and fixed anvil.
- Over 35mm range is with wheel guide and inserting anvils.
- Changeable anvils for wide measuring ranges.
- Equipped with digital indicator.
| Measuring Range |
Resolution |
Accuracy |
Dial Travel |
Probe Depth |
Code No. |
| 18-35mm |
0.002mm |
±0.015mm |
6mm |
150mm |
41011-018 |
| 35-50mm |
0.002mm |
±0.015mm |
6mm |
150mm |
41011-035 |
| 50-160mm |
0.002mm |
±0.018mm |
6mm |
150mm |
41011-050 |
| 160-250mm |
0.002mm |
±0.018mm |
6mm |
250mm |
41011-160 |
| 250-450mm |
0.002mm |
±0.018mm |
6mm |
250mm |
41011-250 |

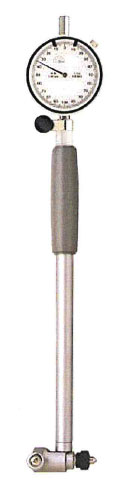

Dial Bore Gauge
Features :
- Movable probe pin with carbide ball.
- Steel-harden-tipped contact point for excellent durability.
- 18-35mm and 35-50mm range are with canister and fixed anvil.
- Over 50mm range is with wheel guide and inserting anvils.
- Changeable anvils for wide measuring ranges.
- Equipped with digital indicator.
| Measuring Range |
Graduation |
Accuracy |
Dial Travel |
Probe Depth |
Code No. |
| 18-35mm |
0.01mm |
±0.015mm |
3mm (AGD2) |
150mm |
42011-018 |
| 35-50mm |
0.01mm |
±0.015mm |
3mm (AGD2) |
150mm |
42011-035 |
| 50-160mm |
0.01mm |
±0.020mm |
3mm (AGD2) |
150mm |
42011-050 |
| 160-250mm |
0.01mm |
±0.020mm |
3mm (AGD2) |
250mm |
42011-160 |
| 250-450mm |
0.01mm |
±0.020mm |
3mm (AGD2) |
250mm |
42011-250 |
