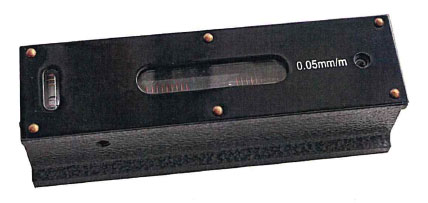

Precision Level
Features :
Measuring surface is precision ground.- Frame made of special cast.
- Easy adjustment.
- Packed with aluminum box.
| Sensitivity |
Size |
Code No. |
| 0.02mm/m |
100x30mm |
60100-002 |
| 150x47mm |
60150-002 |
| 200x47mm |
60200-002 |
| 300x48mm |
60300-002 |
| 0.05mm/m |
150x47mm |
60150-005 |
| 200x47mm |
60200-005 |
| 300x48mm |
60300-005 |
| 0.10mm/m |
150x47mm |
60150-010 |
| 200x47mm |
60200-010 |
| 300x48mm |
60300-010 |

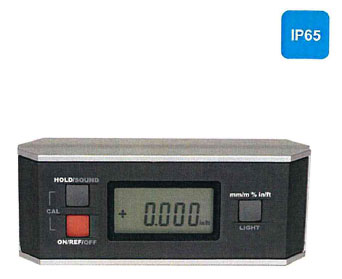

Digital Protractor
Features :
- With absolute level sensor, can instantly available, no need to calibrate by yourself.
- Display always reads upright, no matter which way it is turned.
- With backlight, easy to read.
- Setup of precision machines.
- Low battery indicator.
Specification :
- Measuring Range: 4×90°.
- Accuracy: 0°and 90°: 0.1°; the rest:0.2°.
- Working Temperature: 0°C ~ 50°C.
- Working Humidity: < 85%RH.
- Battery:2×1.5V Alkaline Battery.
- IP Grade: IP65.
| Range |
Resolution |
Accuracy |
LxHxW (mm) |
Magnet |
Code No. |
| 4 x 90° |
0.05° |
0.2° |
162 x 60 x 33 |
| No |
61002-030 |
| Yes |
61002-031 |

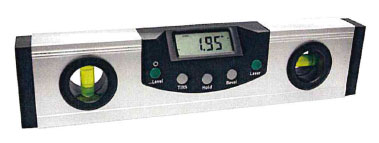

Digital Protractor
Features :
- LCD display hold function.
- Absolution and relative level measuring.
- Slope and angle conversion.
- Magnet on measuring base.
- Special angle warning and laser are optional.
| Length |
Range |
Resolution |
Accuracy |
Magnet |
Code No. |
| 150mm / 6" |
4 x 90° |
0.05° |
±0.2° |
Yes |
62060-031 |
| 225mm/9" |
62090-031 |
| 600mm/24" |
62240-031 |

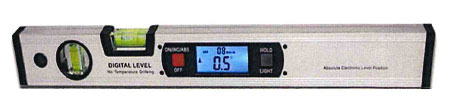

Digital Level - 2 Buttons
Features :
- Calculating angles quickly and accurately, digital display clearly.
- With backlight, easy to read.
- High accuracy vial for measuring horizontal level easily.
- With absolute level sensor, can instantly available, no need to calibrate by yourself.
- Display always reads upright, no matter which way it is turned.
Specification :
- Measuring Range: 4x90°.
- Working Temperature: 0°C~ 50°C.
- Working Humidity: < 85%RH.
- Battery: 2x1.5V Alkaline Battery.
| Range |
Resolution |
Accuracy |
L (mm) |
Magnet |
Code No. |
| 4 x 90° |
0.1° |
±0.2° |
400 |
| No |
62041-020 |
| Yes |
62041-021 |
2in1 Digital Angle Ruler
Features :
- Both measure the angle and length, metric and inch display.
- Calculating angles quickly and accurately, digital display clear.
- Can lock the measurement at any angle.
Specification :
- Measuring Range: 000.0~ 999.9 degree.
- Working Temperature: 0°C~ 50°C.
- Working Humidity: < 85%RH.
| Range |
Resolution |
Accuracy |
LxHxW (mm) |
Code No. |
| 0-999.9° |
0.1° |
±0.3° |
| 218 x 20 x 35 |
62022-010 |
| 318 x 20 x 35 |
62032-010 |
| 518 x 20 x 35 |
62052-010 |

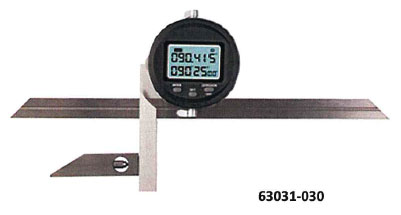

Digital Protractor
Features :
- Measuring range 0-360°, choose 0-90°, 0-180°, 0-360° display.
- Display in degree (for example 32.655°) and degree/minute/second (for example 32°39'30").
- Automatic power off.
- Supplied with 150mm, 300mm blade and square (to set 90°).
- Made of stainless steel.
Specification :
- Resolution: 30" / 0.005°.
- Accuracy: ±5' / ±0.08°.
- Measuring Range: 360°.
- Power: 3V CR2032 Battery.
