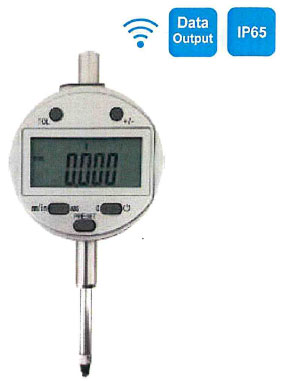

IP65 Digital Indicator
Features :
Inductive measurement system.- Protection level IP65.
- Analog display.
- Response speed 1.6m/s.
- Repeatability 0.003mm/0.0001".
- Preset, tolerance set function.
- Auto power off.
- With data output port (DCB-02, DWB-02, DWB-05).
- Built in wireless transmission (optional).
- P8mm stem diameter (3/8" stem diameter optional).
|
|
|
Code No. |
| Range |
Resolution |
Accuracy |
Metric |
Inch |
| 0-12.7mm/0-0.5" |
0.001mm/.00005" |
0.007mm/.0003" |
31310-050 |
31320-050 |
| 0-25.4mm/0-1" |
0.001mm/.00005" |
0.008mm/.0003" |
31310-100 |
31320-100 |
| 0-50.8mm/0-2" |
0.001mm/.00005" |
0.010mm/.0004" |
31310-200 |
31320-200 |
| 0-100mm/0-4" |
0.001mm/.00005" |
0.015mm/.0006" |
31310-400 |
31320-400 |

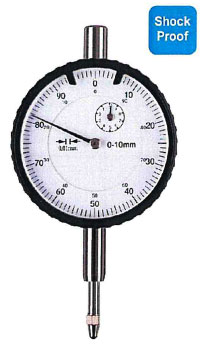

Dial Indicator (Shock Proof)
Features :
- With shock-proof structure inside.
- Jeweled bearing inside guarantee perfect sensitivity of indicator.
- With adjustable tolerance marker and dial locking screw.
- Jeweled bearing.
- Flat back (metal lug back optional).
- 8mm stem diameter, 58mm dial plate diameter.
| Range |
Graduation |
Accuracy |
Dial |
Code No. |
| 0-3mm |
0.01mm |
0.014mm |
0-100 |
32013-031 |
| 0-5mm |
0.01mm |
0.016mm |
0-100 |
32013-051 |
| 0-10mm |
0.01mm |
0.020mm |
0-100 |
32013-101 |

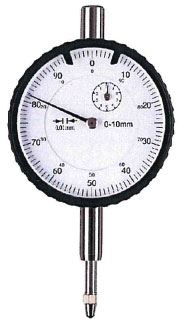

Dial Indicator (Shock Proof)
Features :
- With adjustable tolerance marker.
- Dust proof and water proof, IP54 protection level.
- Measuring spindle sealed by means of rubber sleeve, preventing contamination by liquid and impurities.
- Jeweled bearing.
- Flat back (metal lug back optional).
- 8mm stem diameter, 58mm dial plate diameter.
| Range |
Graduation |
Accuracy |
Dial |
Code No. |
| 0-5mm |
0.01mm |
0.016mm |
0-100 |
32111-051 |
| 0-10mm |
0.01mm |
0.020mm |
0-100 |
32111-101 |

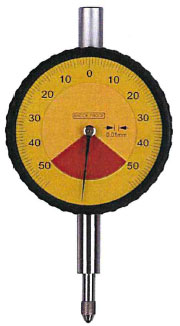

Dial Indicator - One Revolution Type for Error-free Reading
Features :
- Steel body.
- With adjustable tolerance marker and locking screw.
- Jeweled bearing.
- Flat back (metal lug back optional).
- 8mm stem diameter, 58mm dial plate diameter.
| Range |
Graduation |
Accuracy |
Dial |
Code No. |
| ±0.25mm |
0.01mm |
0.01mm |
25-0-25 |
32015-025 |
| ±0.50mm |
0.01mm |
0.01mm |
50-0-50 |
32015-050 |

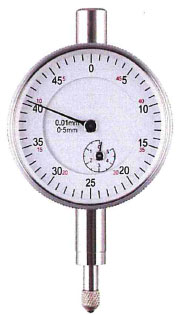

Small Dial Indicator
Features :
- Steel body.
- Jeweled bearing.
- Plastic flat back.
- 8mm stem diameter, 42mm dial plate diameter.
| Range |
Graduation |
Accuracy |
Dial |
Code No. |
| 0-3mm |
0.01mm |
0.014mm |
0-50 |
32014-031 |
| 0-5mm |
0.01mm |
0.016mm |
0-50 |
32014-051 |
| 0-8mm |
0.01mm |
0.02mm |
0-50 |
32014-081 |
