Digital Radius Gauge (Customization)
Features :

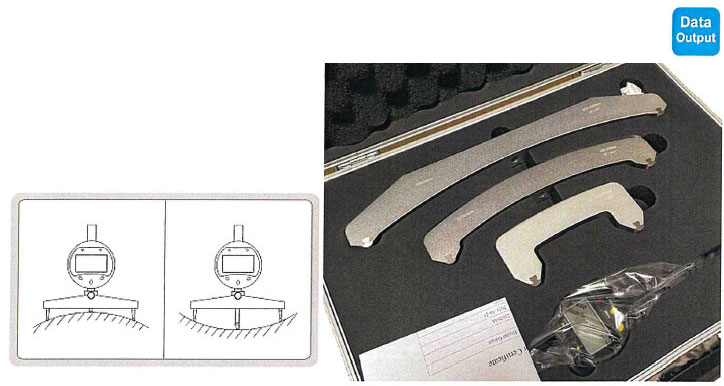

Measure radius of internal and external arcs. Actual reading of radius of circular arc. Portable size and easy to operate with fast measurement result. Widely used in any circular arc measurement.- Supplied with set jaws of size 100mm, 200mm and 300mm. Customer can choose according to application.
- Auto/Manual power off.
- Indicator max. travel distance is 50mm.
- The main body is made by aerometal.
- Packed in Aluminum box.
| Indicator Range |
Resolution |
Best Measuring Range (Radius) |
Quantity of Jaws |
Radius Measuring Accuracy |
Code No |
| 0-50mm |
0.01mm/0.0005" |
65-11250mm |
3 |
< 1% |
79030-300 |
| 0-50mm |
0.01mm/0.0005" |
65-20000mm |
4 |
< 1% |
79030-400 |
Best Measurement Range
| Jaw |
Measuring range (External) |
Measuring range (Internal) |
| C=100 |
R 65-625mm |
R 65-625mm |
| C=200 |
R 450-2500mm |
R 450-2500mm |
| C=300 |
R 650-11250mm |
R 650-11250mm |
| C=400 |
R 1150-20000mm |
R 1150-20000mm |
