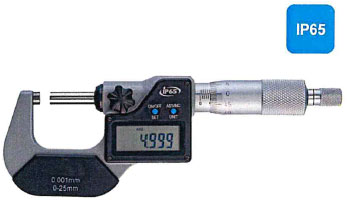

IP65 Digital Outside Micrometer
Features :
IP65 protection level.- Carbide tipped measuring faces.
- Auto power off to maximize battery life.
- With data output port (DCB-02, DWB-02, DWB-05).
| Range |
Resolution |
Accuracy |
Metric Code No. |
Inch Code No. |
| 0-25mm/0-1" |
0.001mm/0.00005" |
±0.002mm/0.0001" |
21211-012 |
21221-012 |
| 25-50mm/1-2" |
0.001mm/0.00005" |
±0.002mm/0.0002" |
21211-022 |
21221-022 |
| 50-75mm/2-3" |
0.001mm/0.00005" |
±0.003mm/0.0002" |
21211-032 |
21221-032 |
| 75-100mm/3-4" |
0.001mm/0.00005" |
±0.003mm/0.0002" |
21211-042 |
21221-042 |
| 100-125mm/4-5" |
0.001mm/0.00005" |
±0.003mm/0.0002" |
21211-052 |
21221-052 |
| 125-150mm/5-6" |
0.001mm/0.00005" |
±0.003mm/0.0002" |
21211-062 |
21221-062 |

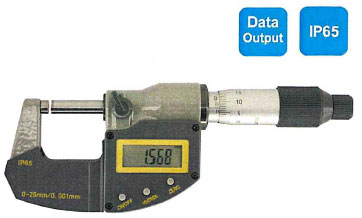

IP65 Digital Outside Micrometer
Features :
- Protection level IP65.
- Ratchet Stop and Ratchet Thimble are optional.
- Automatic Off function to maximize battery life.
- Carbide tipped measuring faces.
| Range |
Resolution |
Accuracy |
Metric Code No. |
Inch Code No. |
| 0-25mm/0-1" |
0.001mm/0.00005" |
±0.002mm/0.0001" |
21212-011 |
21222-011 |
| 25-50mm/1-2" |
0.001mm/0.00005" |
±0.002mm/0.0002" |
21212-021 |
21222-021 |
| 50-75mm/2-3" |
0.001mm/0.00005" |
±0.003mm/0.0002" |
21212-031 |
21222-031 |
| 75-100mm/3-4" |
0.001mm/0.00005" |
±0.003mm/0.0002" |
21212-041 |
21222-041 |
| 100-125mm/4-5" |
0.001mm/0.00005" |
±0.003mm/0.0002" |
21212-051 |
21222-051 |
| 125-150mm/5-6" |
0.001mm/0.00005" |
±0.003mm/0.0002" |
21212-061 |
21222-061 |

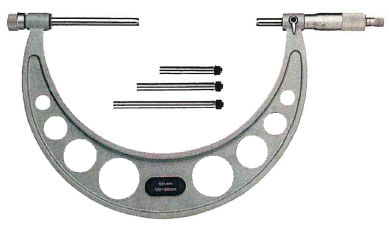

Mechanical Micrometer with Interchangeable Anvils
Features :
- Carbide tipped measuring faces.
- Grey painted fine cast frame.
- 0.01mm/0.001" graduation.
- Ratchet stop.
| Metric |
Inch |
Code No. |
| Range |
Graduation |
Accuracy |
Range |
Graduation |
Accuracy |
Metric |
Inch |
| 0-150mm |
0.01mm |
±0.006mm |
0-6" |
0.001" |
±.0002" |
23111-015 |
23121-015 |
| 150-300mm |
0.01mm |
±0.008mm |
6-12" |
0.001" |
±.0003" |
23111-053 |
23121-053 |
| 0-100mm |
0.01mm |
±0.005mm |
0-4" |
0.001" |
±.0002" |
23111-001 |
23121-001 |
| 100-200mm |
0.01mm |
±0.007mm |
4-8" |
0.001" |
±.0003" |
23111-102 |
23121-102 |
| 200-300mm |
0.01mm |
±0.009mm |
8-12" |
0.001" |
±.0003" |
23111-203 |
23121-203 |
