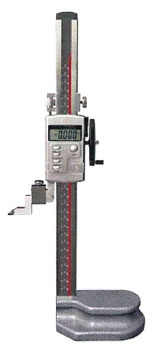

Single Beam Digital Height Gauge
Features :
Large LCD display.- With fine adjustment and hand wheel design for easy use.
- Metric-Inch conversion at any position.
- Zero setting at any position.
- Preset setting function.
- Carbide tipped scriber provided.
| Range |
Resolution |
Accuracy |
Code No. |
| 0-300mm/0-12" |
0.01mm/0.0005" |
+0.04mm/0.0016" |
71101-121 |
| 0-500mm/0-20" |
0.01mm/0.0005" |
±0.05mm/0.002" |
71101-201 |
| 0-600mm/0-24" |
0.01mm/0.0005" |
±0.05mm/0.002" |
71101-241 |

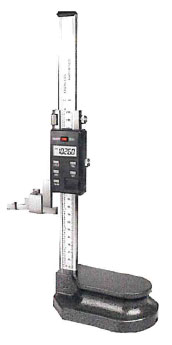

Single Beam Digital Height Gauge
Features :
- Large LCD display.
- With fine adjustment for easy use.
- Metric-Inch conversion at any position.
- Zero setting at any position.
- Preset and tolerance setting function.
- Carbide tipped scriber provided.
| Range |
Resolution |
Accuracy |
Code No. |
| 0-300mm/0-12" |
0.01mm/0.0005" |
+0.04mm/0.0016" |
71102-121 |
| 0-500mm/0-20" |
0.01mm/0.0005" |
±0.05mm/0.002" |
71102-201 |
| 0-600mm/0-24" |
0.01mm/0.0005" |
±0.05mm/0.002" |
71102-241 |
| 0-800mm/0-32" |
0.01mm/0.0005" |
±0.06mm/0.0024" |
71102-321 |
| 0-1000mm/0-40" |
0.01mm/0.0005" |
±0.07mm/0.0028" |
71102-401 |

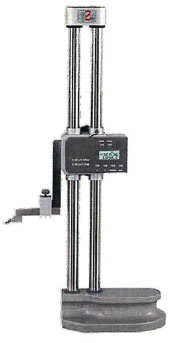

Double Beam Digital Height Gauge
Features :
- Large LCD display.
- With hand wheel for easy use.
- Metric-Inch conversion at any position.
- Zero setting at any position.
- Preset setting function.
- Carbide tipped scriber provided.
| Range |
Resolution |
Accuracy |
Code No. |
| 0-300mm/0-12" |
0.01mm/0.001" |
+0.02mm/0.001" |
71201-121 |
| 0-450mm/0-18" |
0.01mm/0.001" |
+0.03mm/0.0015" |
71201-181 |
| 0-600mm/0-24" |
0.01mm/0.001" |
+0.03mm/0.0015" |
71201-241 |

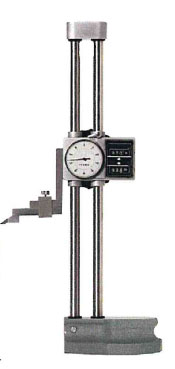

Double Bean Dial Height Gauge
Features :
- Position is displayed by a combination of the digit counter and dial.
- With hand wheel for easy use.
- Carbide tipped scriber provided.
| Range |
Resolution |
Accuracy |
Code No. Metric |
Code No. Inch |
| 0-300mm/0-12" |
0.01mm/0.001" |
+0.04mm/0.0015" |
72211-121 |
72221-121 |
| 0-450mm/0-18" |
0.01mm/0.001" |
+0.05mm/0.002" |
72211-181 |
72221-181 |
| 0-600mm/0-24" |
0.01mm/0.001" |
+0.05mm/0.002" |
72211-241 |
72221-241 |
| 0-1000mm/0-40" |
0.01mm/0.001" |
+0.07mm/0.003" |
72211-401 |
72221-401 |
